Multimesh not honoring alpha channel of MeshInstance surface material

jfirestorm44

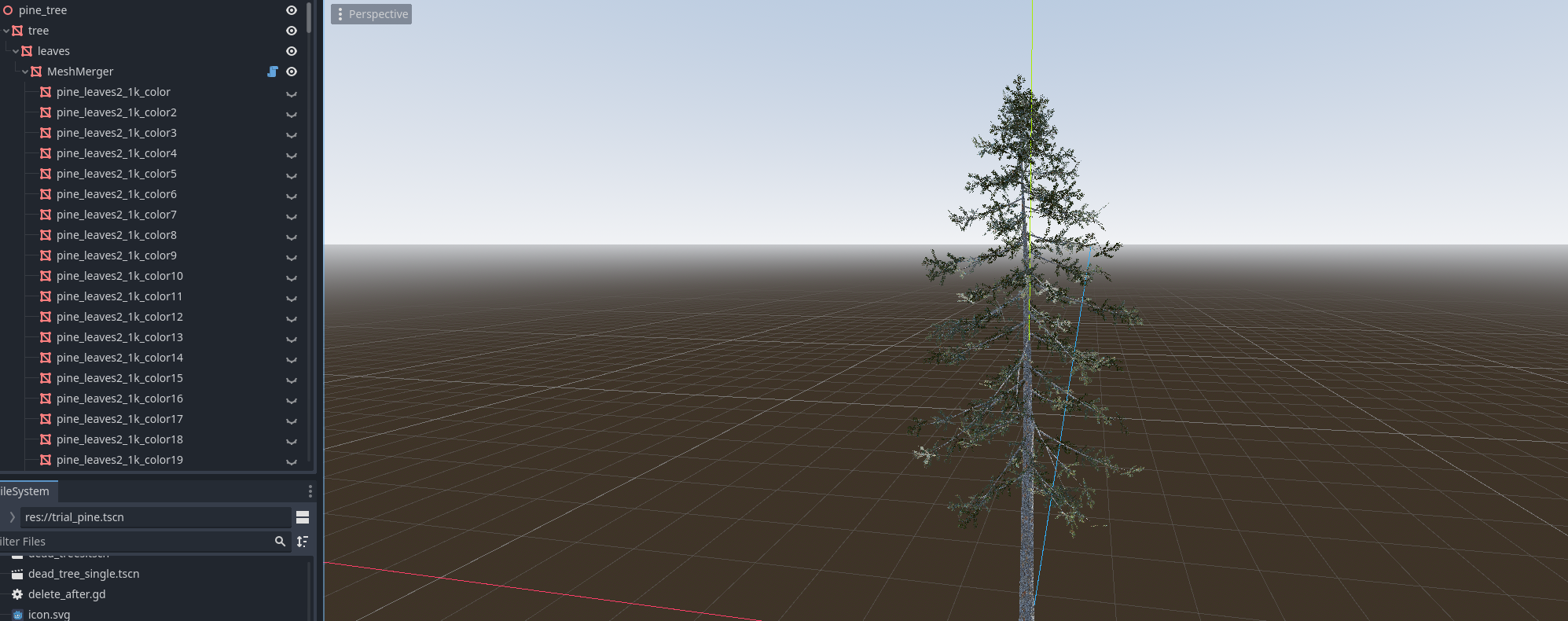

I cannot seem to figure out how to get a MultimeshInstance3D to honor the alpha channel of a MeshInstance3D. I have tried a tree made in Blender and one made in TreeIt without success. My issues with Blenders tree is that when using dupliface it imports each leaf as a separate mesh. I was able to fix that by using MeshMerger but now the problem is it renders at run time like the image below

Blender MeshInstance

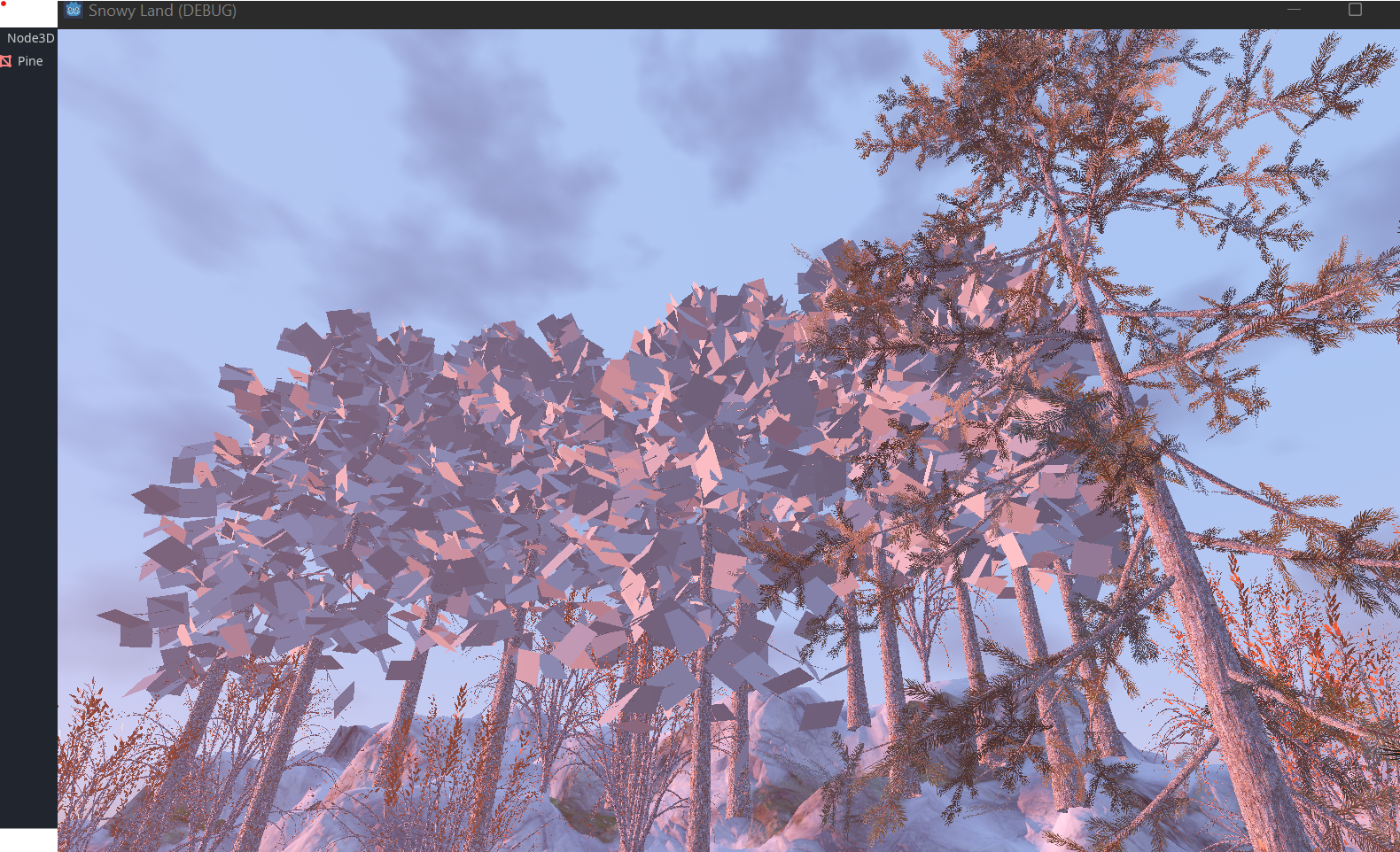

And Here is a rendered scene using multimesh. You'll see that if I put the single MeshInstance into the scene it works fine. However the multimesh does not.

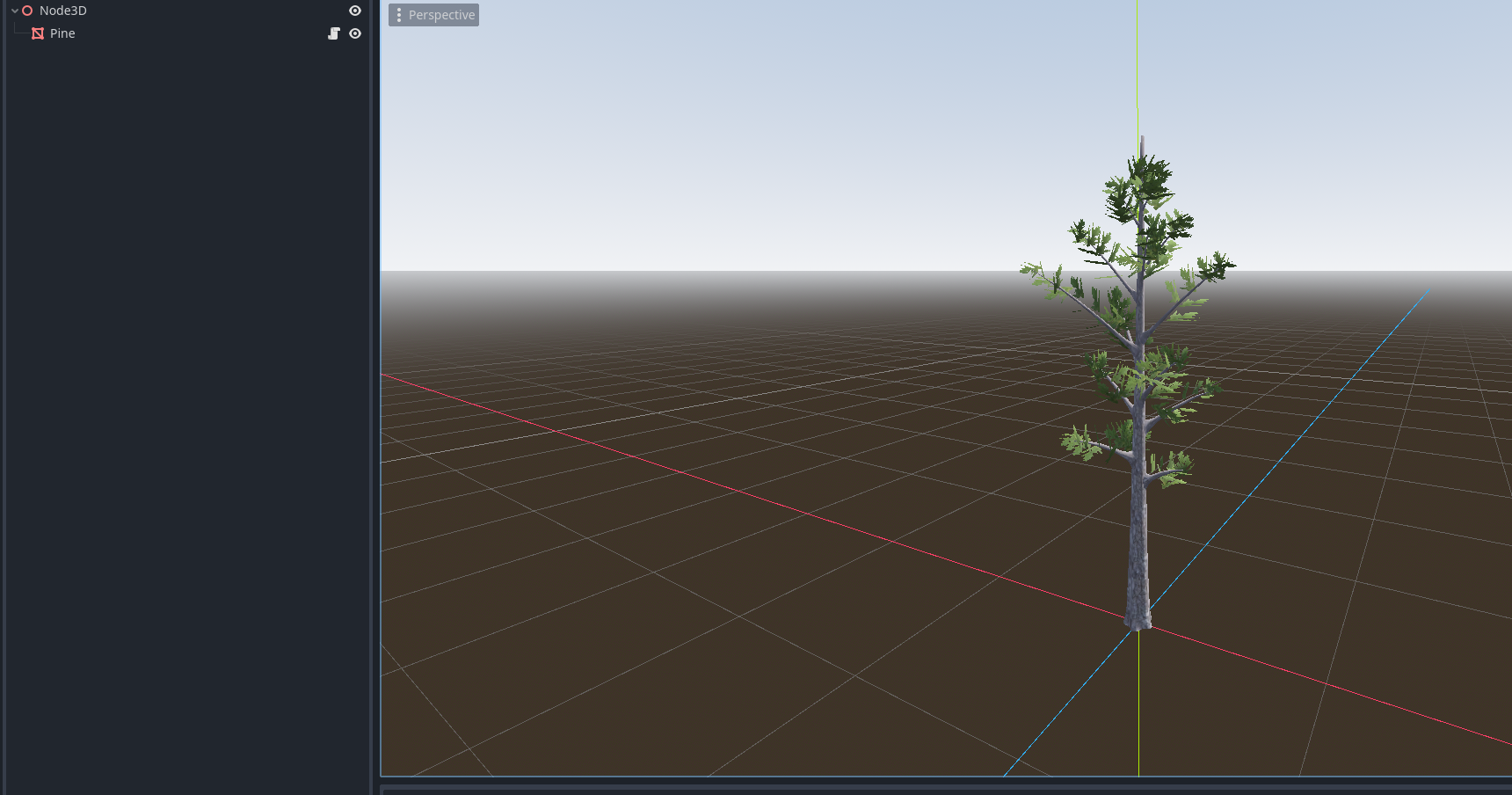

I'm having the same issue with the tree from TreeIt. Treeit imports as one single mesh so both trunk and leaves or combined and assigned different surface materials. Because I can't change the surface materials in the inspector (not sure why Godot doesn't allow it) I have to add the leaves as an override material and then I can use alpha scissor. The tree looks fine as a single mesh.

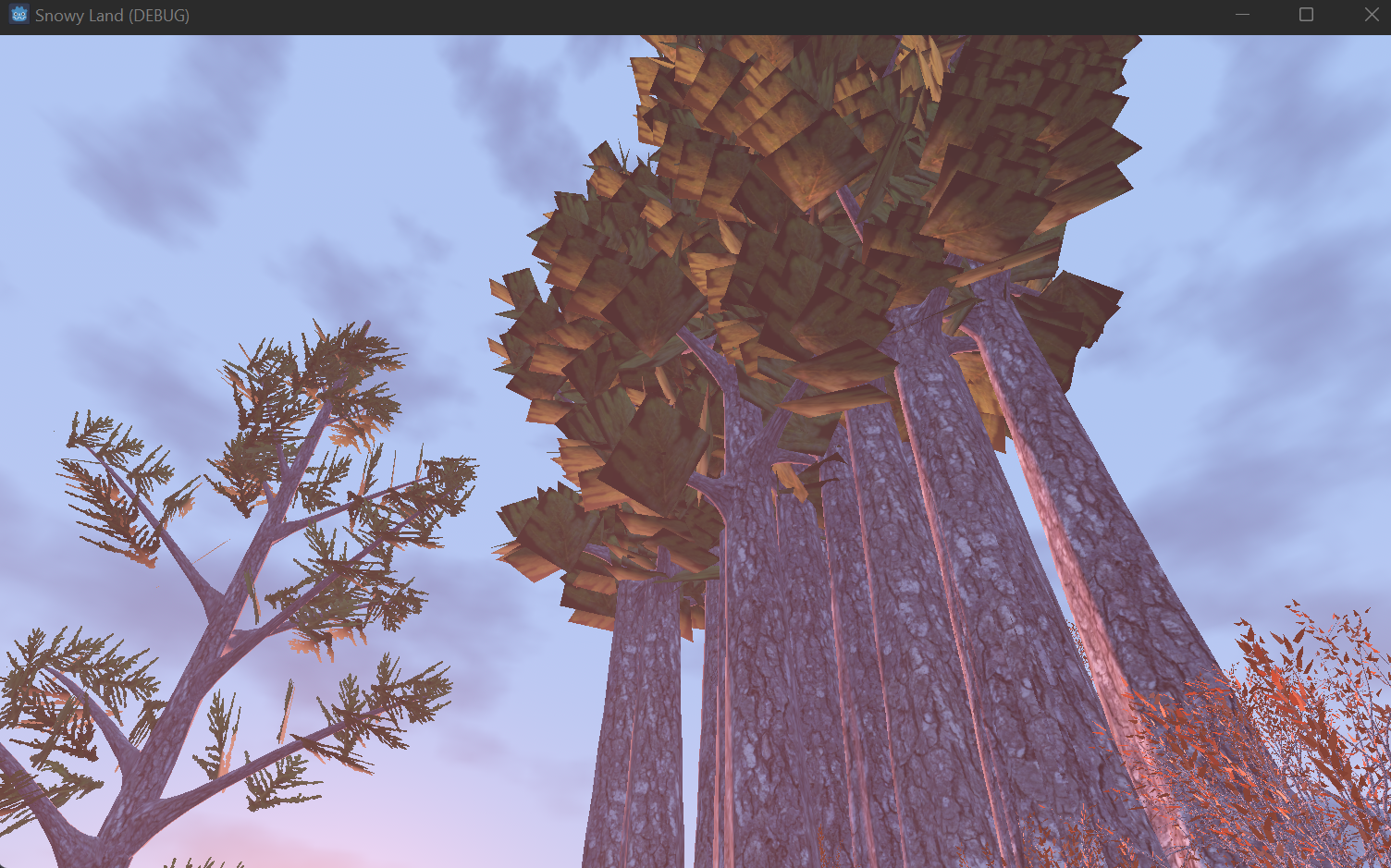

But again multimesh doesn't honor the alpha. You can see a single instance in the front here and the multi in the back.

I have not come up with a reason why or a work around so hopefully someone can help. Here's my multimesh code

multimesh = MultiMesh.new()
	multimesh.mesh = tree.get_child(0).get('mesh')
	multimesh.instance_count = 0
	multimesh.transform_format = MultiMesh.TRANSFORM_3D


	for v in mdt.get_vertex_count():
		if mdt.get_vertex_color(v) == Color(0.0, 1.0, 0.0):
			positions.push_back(mdt.get_vertex(v))
			count += 1

	multimesh.instance_count = count
