Setting up tilemap with navigation

This is a READ-ONLY snapshot of the Godot Community Forums when TwistedTwigleg was the owner, which is hosted for archival reasons only. The current Godot Community Forums can be found here.

Some links may point to external websites, including the current Godot Community Forums. These websites are not associated with TwistedTwigleg.

Erich_L

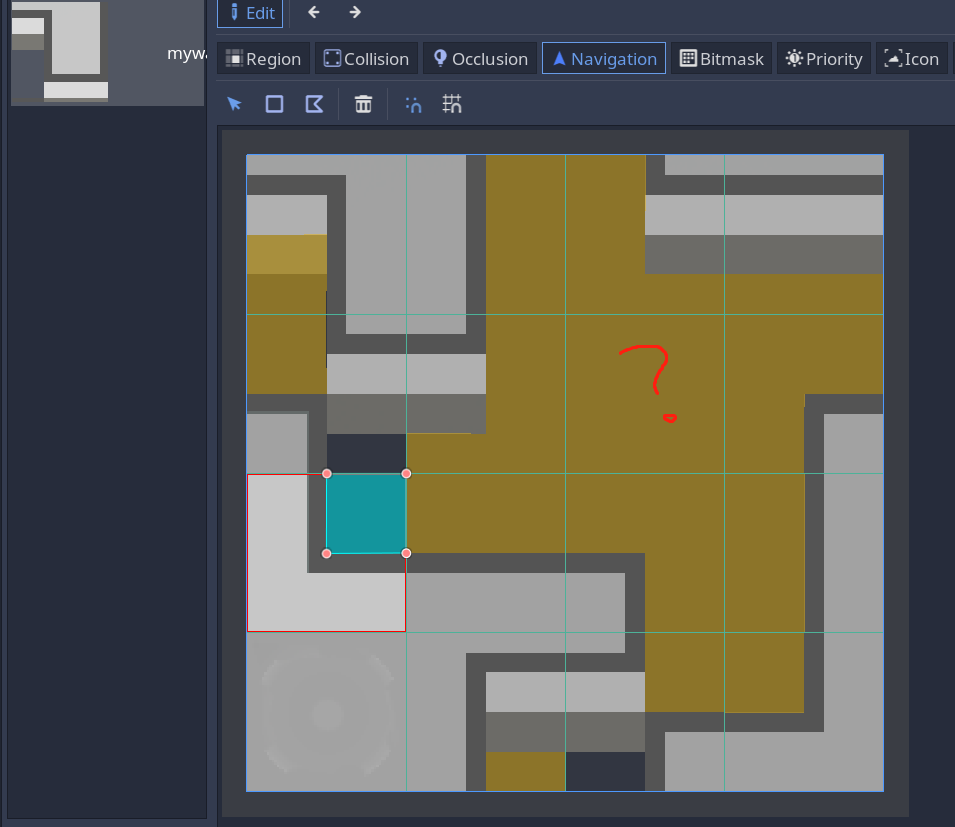

After setting up the navigation region on a tilemap by drawing little squares where an agent can traverse, how does one use this (for finding paths and such)?
Selecting "Bake Navigation" in the Tilemap properties doesn't do anything, even if the parent of the node is a Navigation 2D node. In looking at other people's work, I find that people just use a Navigation Polygon instance instead, which seems inferior to me because I want to alter the tilemap during run time and alter navigation.

MagickPanda

Maybe you could take a look at this:
https://godotengine.org/asset-library/asset/519

ruthven666

MagickPanda
Hi Erich -- this took me longer than I hoped to understand as well.

Checking "Bake Navigation" does do something -- see the docs for TileMap.NavigationLayers

The navigation layers the TileMap generates its navigation regions in.
So, the tilemap is baking those layers automatically into the selected navigation layers.

you could then use NavigationServer2D GetMapPath to calculate a path between two point on the nav layer that has the baked content
https://docs.godotengine.org/en/latest/classes/class_navigationserver2d.html#class-navigationserver2d-method-map-get-path

so in c# if I had a script on a character player I could (after at least one physics frame) get a path between the character's current position and 0,0
var path = Navigation2DServer.MapGetPath(GetWorld2d().NavigationMap, GlobalPosition, new Vector2(), false, 1);

hope this helps!

Erich_L

I am familiar with AStar, I am confused, autotiles have this whole Navigation tab setup for you to cover the layers. There must be a way to get it working w/o using a different godot tool.

MagickPanda

Hmmm I don't think you could dynamically alter the 'baked' navmesh/nav-path in run time, so imo navmesh/path is probably not the ideal way of planning path with dynamic tiles/environments.

MagickPanda

Thanks for the info, I will take a look at naviserver2D.
