How do I add a horizontal line separator between each row in a GridContainer?

This is a READ-ONLY snapshot of the Godot Community Forums when TwistedTwigleg was the owner, which is hosted for archival reasons only. The current Godot Community Forums can be found here.

Some links may point to external websites, including the current Godot Community Forums. These websites are not associated with TwistedTwigleg.

How do I add a horizontal line separator between each row in a GridContainer?

newguy

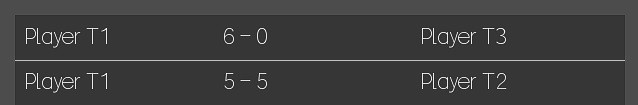

I am using a GridContainer with 3 columns. How do I add a horizontal line separator between each row just like the attached image.

DaveTheCoder

You might be able to use an HSeparator.
https://docs.godotengine.org/en/stable/classes/class_hseparator.html

newguy

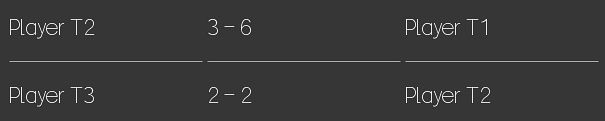

DaveTheCoder I have tried that but since my GridContainer has 3 columns I have to add 3 HSeparator and the result is there is a gap between each HSeparator.

DaveTheCoder

Does changing the GridContainer's hseparation theme property to 0 remove the gaps?
add_constant_override("hseparation", 0)

newguy

DaveTheCoder Yes, that work but it still has a tiny gap with hseparation 0. I set it to -1 and it's good. Thanks Dave!
